The Complete Flight Test Solution

The imc Flight Test System

Everything you need

imc, powered by JDA Systems, offers a complete flight test solution from the sensors in the air to post processing on the ground, with everything in between, all based around the IRIG106 standards.

Whether the data acquisition needs a fast (e.g. flutter testing) or slow (engine temperatures) sampling rate, imc’s extensive product spectrum enables a synchronous analogous data acquisition with high resolution (24 bits) and high accuracy for all measurement needs. Besides analog signals this covers a wide range of digital industrial buses like Ethernet, CAN, RS232, RS422, RS485, ARINC-429, ASCB-D, (MIL-STD-1553B coming soon). In addition, virtually any data protocol can be acquired and processed via a programmable interface.

The complete flight test solution comes with CH7 down and up links for real time flight test setup from the ground on the fly.

The best news this next gen system is available today.

The imc measurement product range lends itself to the analog environment as it includes customer proven, high-precision 24-bit DAS technology which serves as the basis for their flight test data acquisition systems. These are paired with the imc/JDA developed ultra-flexible digital BUS data acquisition and processing systems in order to integrate almost any device (including legacy customer supplied units) into the imc/JDA flight test measurement systems configuration.

Contact us regarding your project

Flight Test Solution Flyer

Airborne Overview

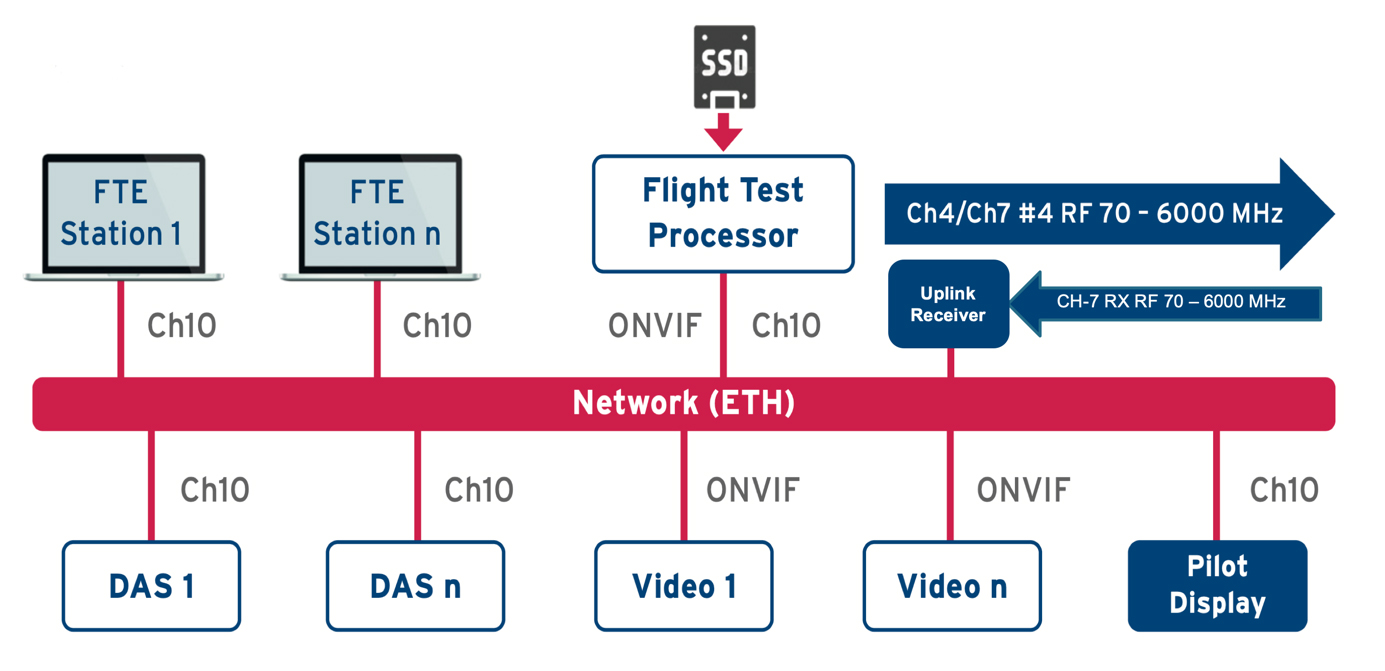

The airborne System is based on IRIG 106 CH10 communication. Each DAS-Subsystem transfers its data to the Flight Test Processor. This main controller covers the functions of a CH10 recorder, CH7 Telemetry Encoder, GPS Synced time source, RF Transmitter and CH7 Uplink decoder. It also can decode the CH10 packets on the fly, as required, to drive the pilot display and even onboard engineering clients for data display and analysis.

Airborne Data Acquisition Systems (DAS)

Cost-effective, high-quality DAS for high channel counts

imc SPARTAN

Cost-effective, high-quality DAS for high channel counts

  • High-precision amplifiers
  • Integrated signal conditioning for voltage, measurement bridges and temperature
  • Synchronous sampling up to 500 samples/s/channel
High-End DAS for sophisticated needs

imc CRONOScompact

High-End DAS for sophisticated needs

  • Portable and rack-mounted enclosure options
  • Modular reconfigurable hardware adaptable to changing testing requirements
  • Supports virtually any physical sensor
Flexible DAS for distributed, fast measurements

imc CRONOSflex

Flexible DAS for distributed, fast measurements

  • Simultaneous recording of analog, digital, and vehicle bus data
  • Up to 2,000 kS/s per system and up to 100 kS/s per channel
  • Integrated real time analysis
Small and robust DAQ modules for distributed measurements

imc CANSASfit

Small and robust DAQ modules for distributed measurements

  • Measurement module for voltage/current, temperature, frequency
  • Operates from -40° to +125° C with condensation allowed
  • Robust housing with IP65 rating, MIL STD-810F
Highly isolated modules for safe measurements on electric vehicles

imc HV modules

Highly isolated modules for safe measurements on electric vehicles

  • 8 chanels for measuring PT100/1000 or low voltages up to 100 V
  • Isolation: 800 V, 300 V CAT II (according to safety standard EN 61010)
  • Connector types: High-voltage-proof special connectors
Ultra-small, easy-to cascade 4-channel DAQ modules for distributed measurements

imc MTP-NT

Ultra-small, easy-to cascade 4-channel DAQ modules for distributed measurements

  • channels: 2 - 256
  • signal bandwidth: 0 – 24 kHz
  • input types: strain gauge, TH-K, PT100, PT1000, IEPE, voltage, POT

Airborne Telemetry Products

More Airborne Telemetry Products

DAS Setup and Postprocessing Software

Software for setting up data acquisition and real-time pre-processing and data reductions on the devices

imc STUDIO

Software for setting up data acquisition and real-time pre-processing and data reductions on the devices.

  • Hardware configuration and administration
  • Visualization and analysis of measured data
  • Real-time analysis and results
Software for Postprocessing and professional Reporting

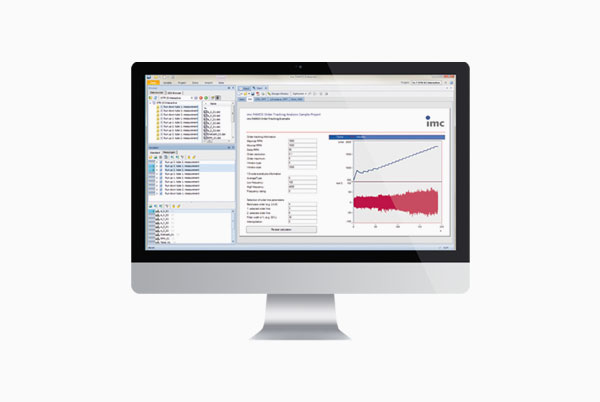

imc FAMOS

Software for Postprocessing and professional Reporting.

  • Data source management
  • Visualization of measurement data at your fingertips
  • Quickly analyze large data sets with 64 bit

Ground Station Hardware and Software Products

Overview of Ground Station Hardware Products

Tracking antennas recover the CH7 telemetry data providing data and clock (amplified RF-output is also available) to the ground station that offers CH7 Decoding, CH10 Recording, GPS synchronized time source and data distribution for engineering client workstations. The system also supports a CH7 uplink to allow for on the fly configuration changes in the airborne system, controlled from the ground. Support is provided for existing customer equipment and CH4 Streams, customer specific data sources, existing video sources etc.

More Ground Telemetry Products

Realtime Telemetry Software

JDA VuSoft

JDA VuSoft

World renowned software for telemetry recover, recording, processing, display, distribution and uplink generation­­­­­.

Format and Data Decoding of Multiple Streams in Multiple Formats
Records Raw and Processed Data
Record in IRIG106 Chapter 10 Format

Learn more about JDA VuSoft

In Practice

↑
