What's new in imc STUDIO 5.0?
Focus on usability

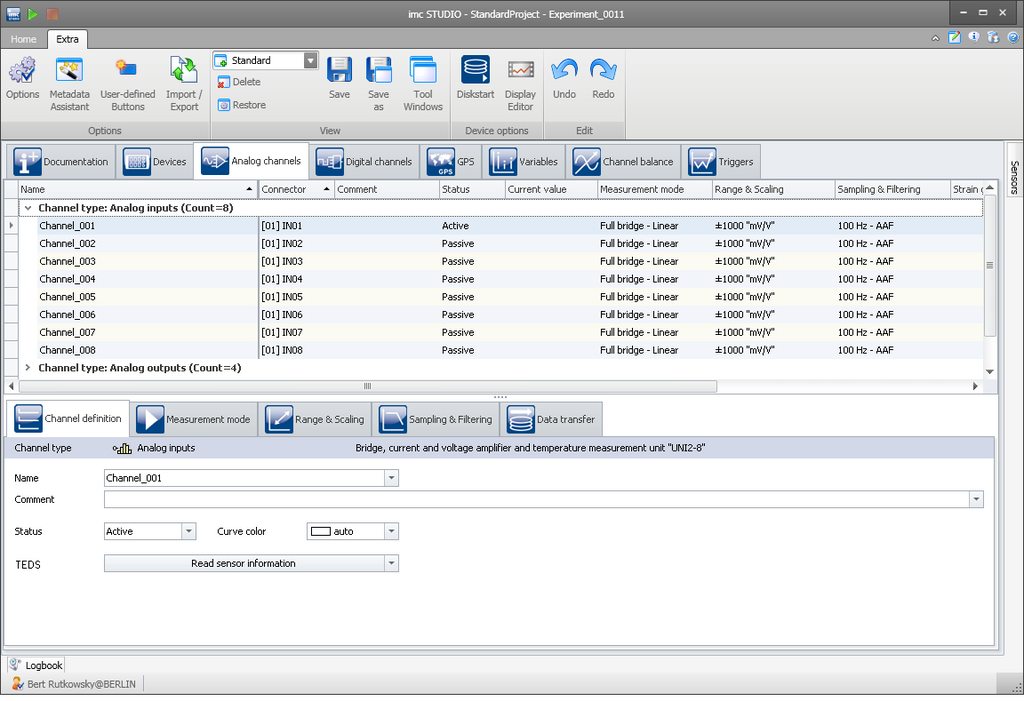

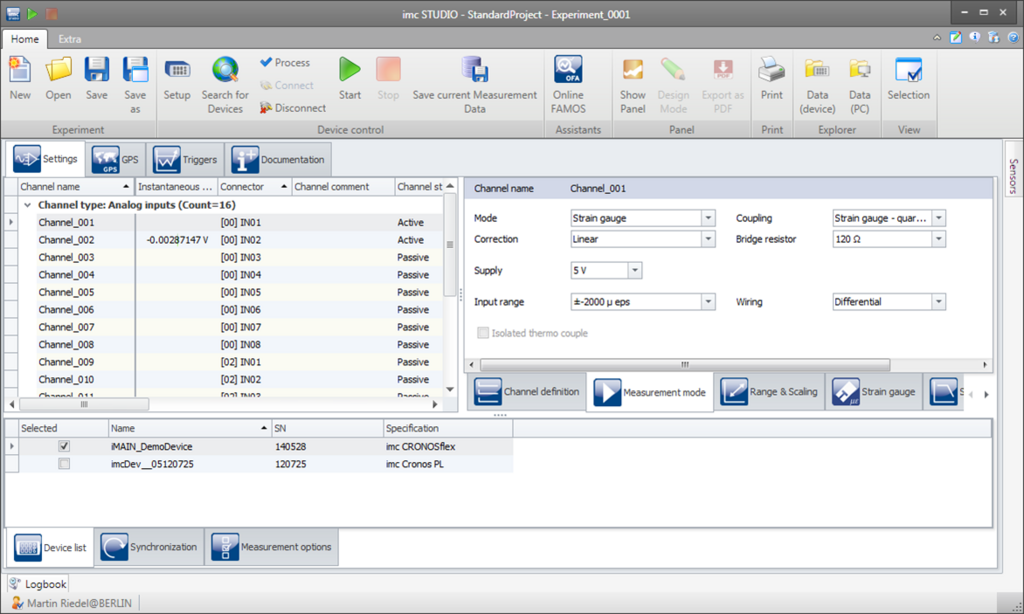

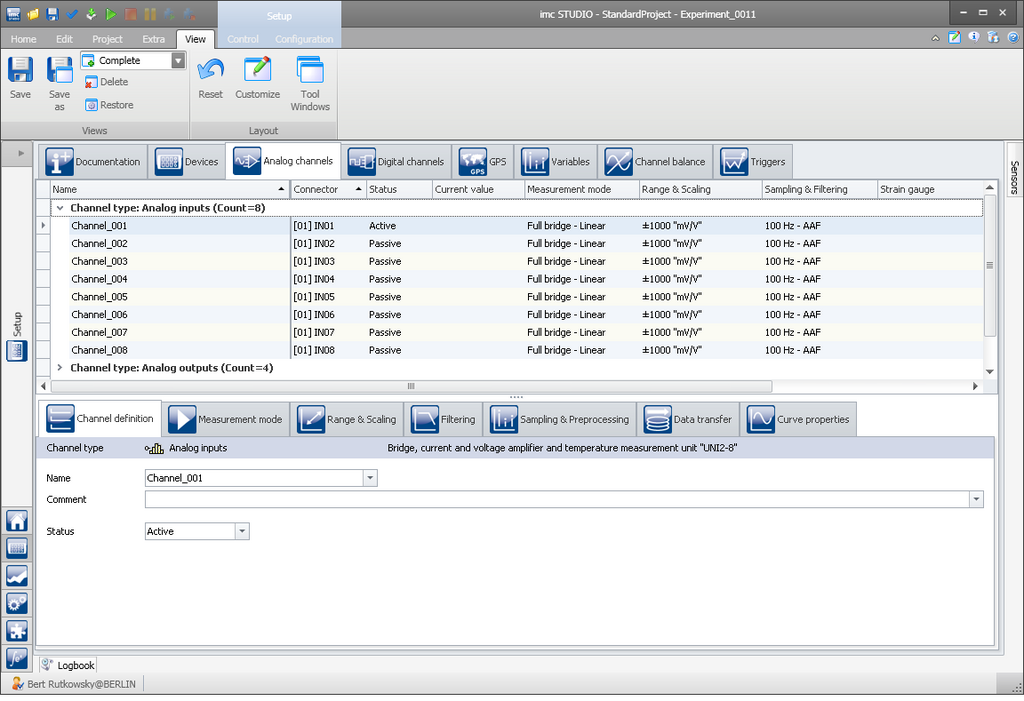

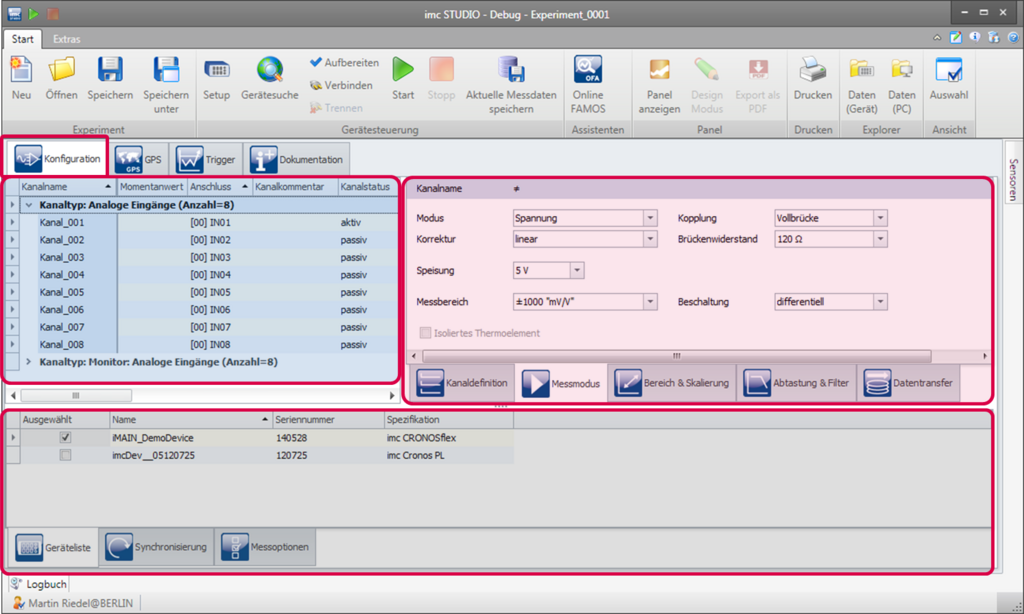

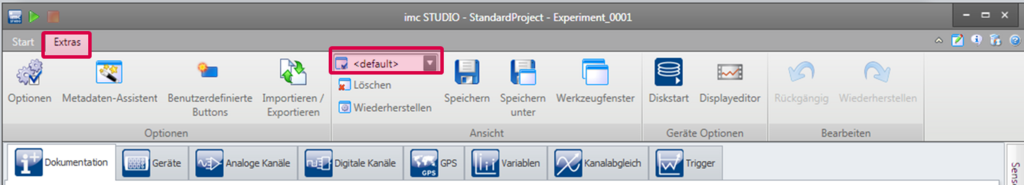

To meet varying user requirements, three new view modes are available. The “Compact” and “Standard” views are ideal for users preferring a clear and easy-to-use range of functions, although they can switch to the “Complete” expert view with one mouse-click.
![test & measurement software test & measurement software](/fileadmin/Public/Products/Measurement_Software/imc_STUDIO/5.0R3/Bild1.png)
1. Verbesserte Usability
Mit jeder neuen Version optimieren wir die Benutzeroberfläche von imc STUDIO: Vereinfachen Konfigurationsprozesse, arbeiten an effiziente Klickpfaden und ergänzen Kundenwünsche.
Im Ergebnis erhalten Sie die produktivste imc Messtechnik-Software: imc STUDIO 5.0 R3
Neu in 5.0 R3: Vereinfachte Netzwerk-Konfiguration von Geräten
Die Netzwerk-Konfiguration der Geräte erfolgt nun nicht mehr über eine separate Software, sondern direkt in imc STUDIO. Zusätzlich wurde die Darstellung optimiert, so dass auf einen Blick die Netzwerk-Konfiguration des PCs und des Gerätes ersichtlich ist.
Die Geräteliste wurde in Kategorie unterteilt. So finden Sie Geräte, die auf Grund einer inkompatiblen Netzwerk-Konfiguration, nicht mit dem PC verbunden werden können, unter der Kategorie "momentan nicht erreichbar". Vor Kurzem verwendete Geräte wiederum, finden Sie in der Kategorie "kürzlich bearbeitet".

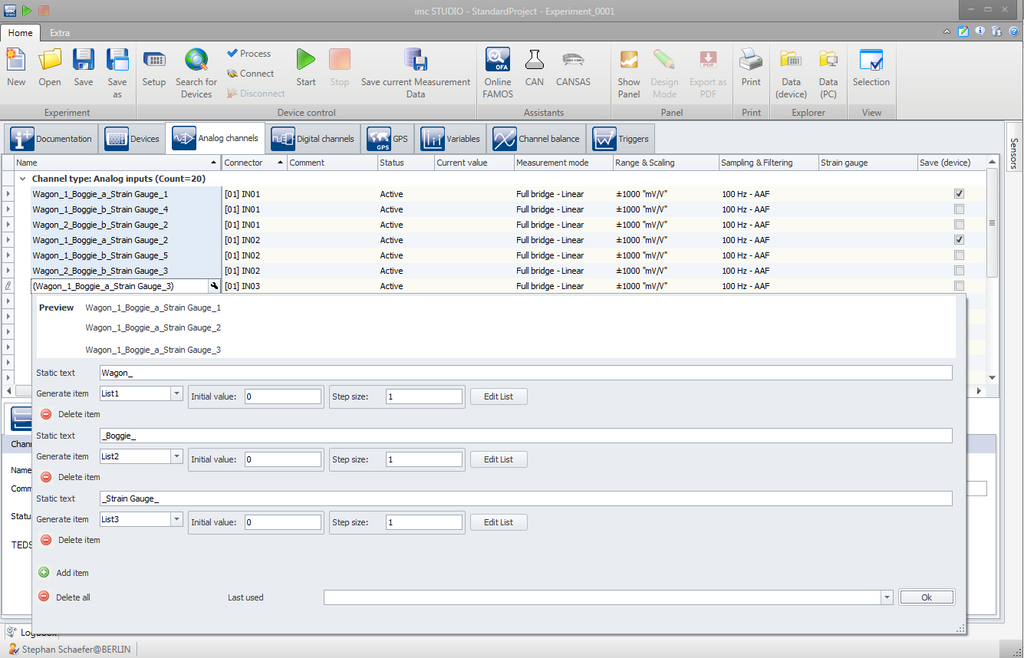

Improved assistant for channel naming

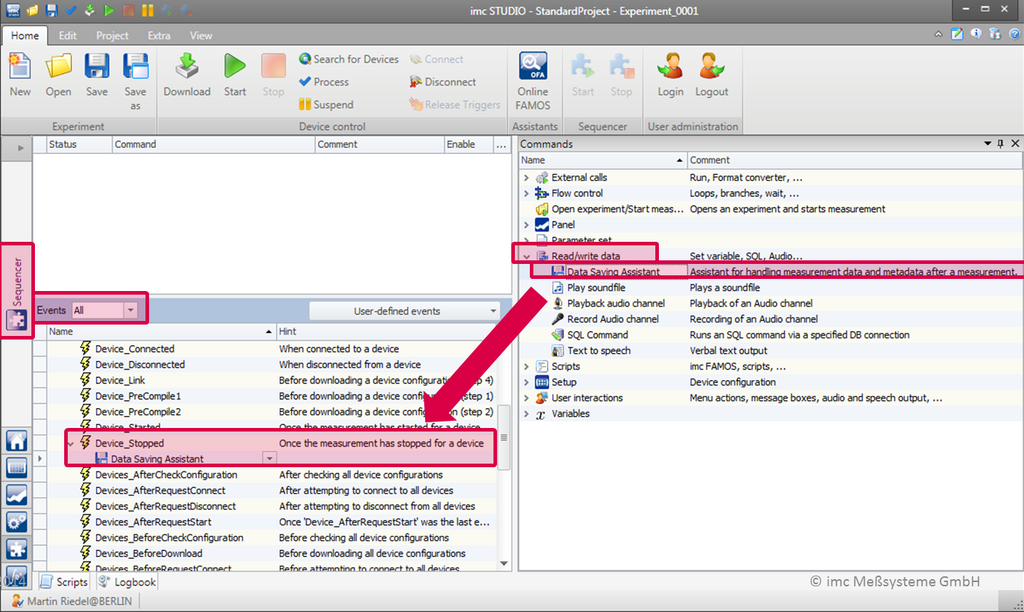

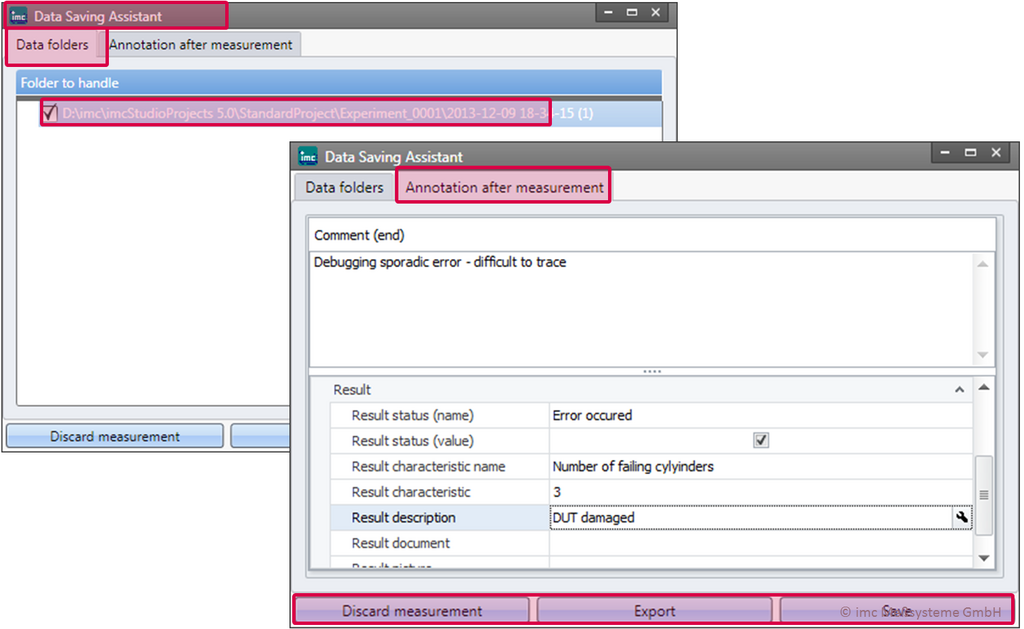

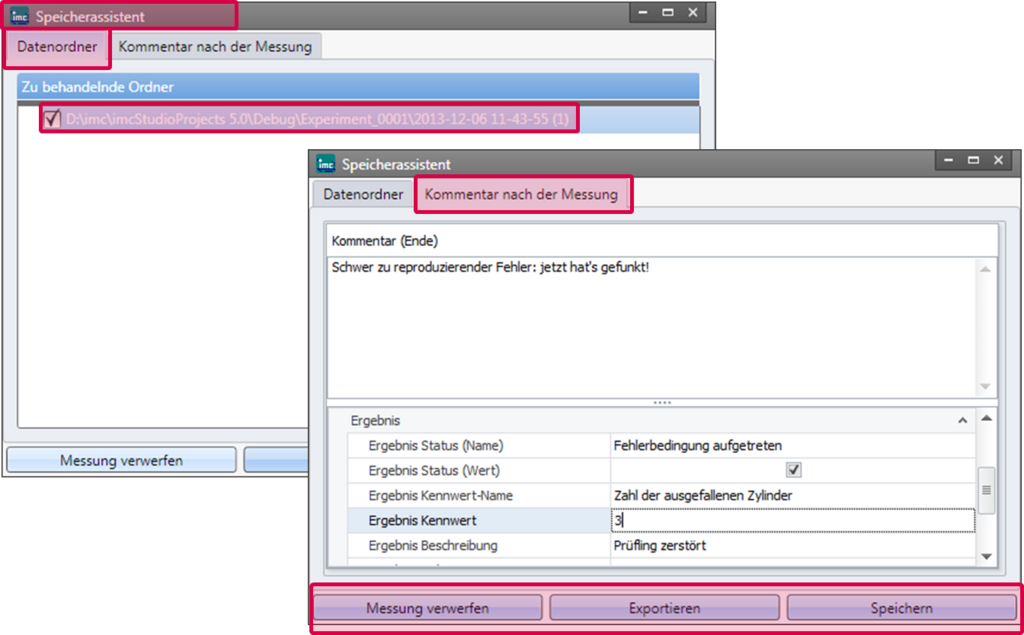

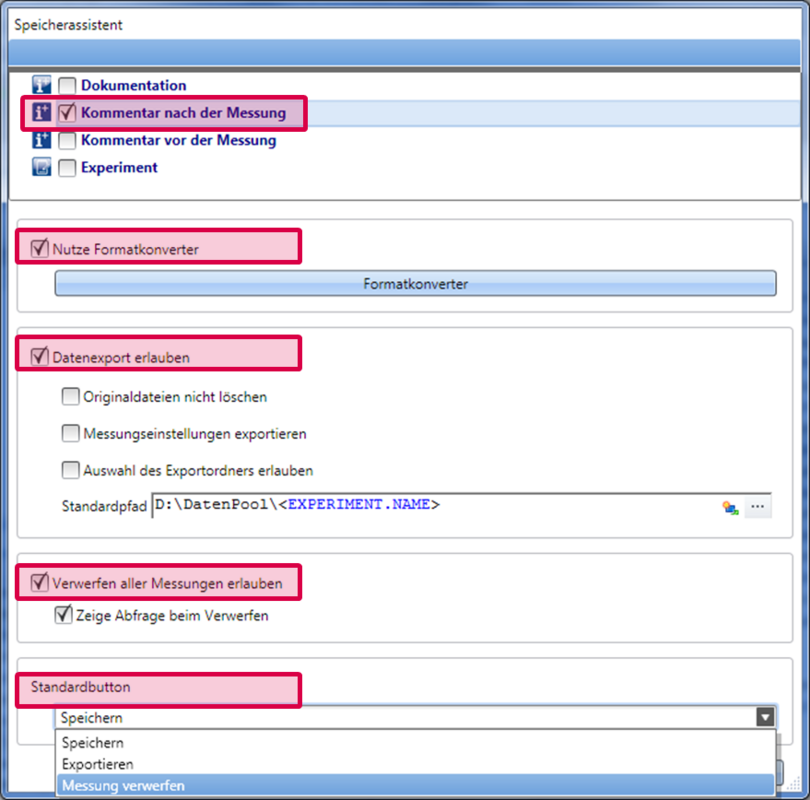

Assistant for data storage

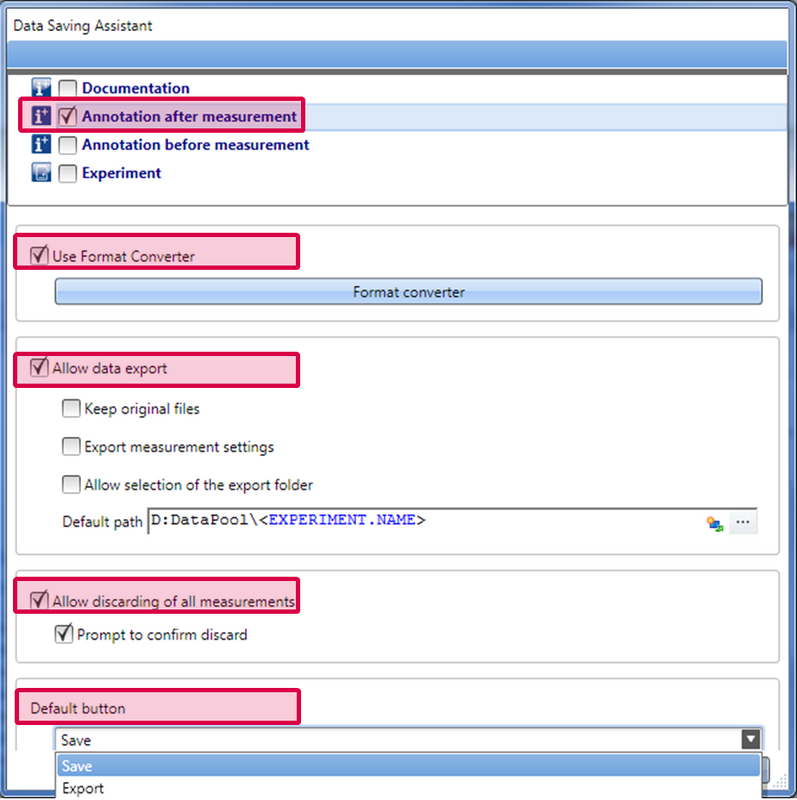

The new data storage assistant facilitates your daily measurement tasks by guiding you through the typical steps required at the end of a measurement.
With a mouse click, you can:
- Keep or discard your measurement
- Save comments on the measurement
- Convert data to another format
- Export data import and settings

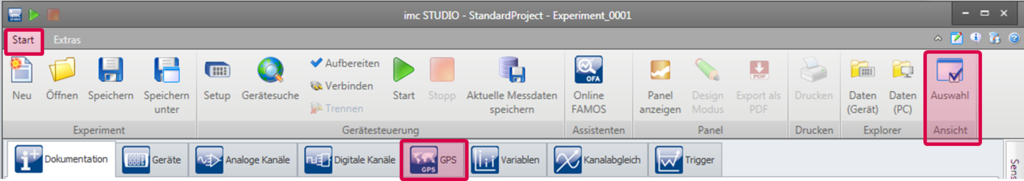

GPS channels
3. Neue Funktionen

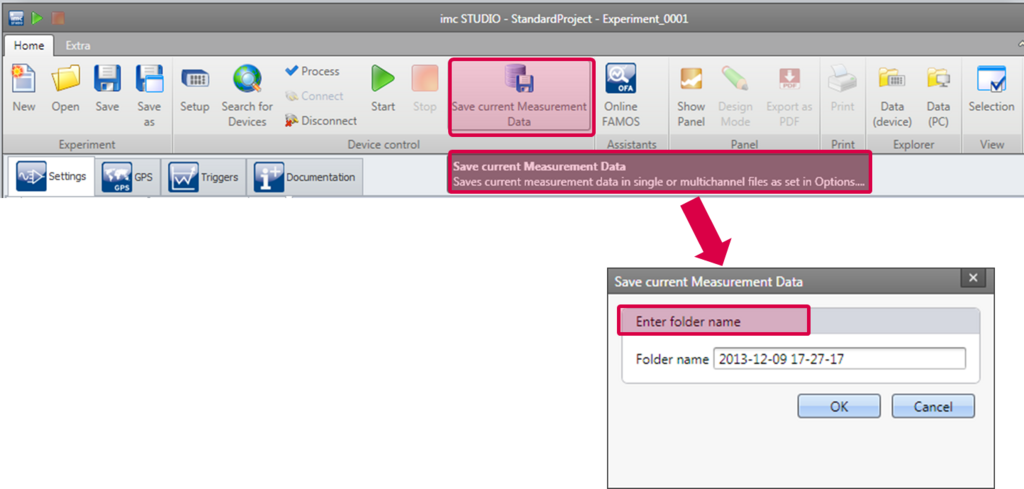

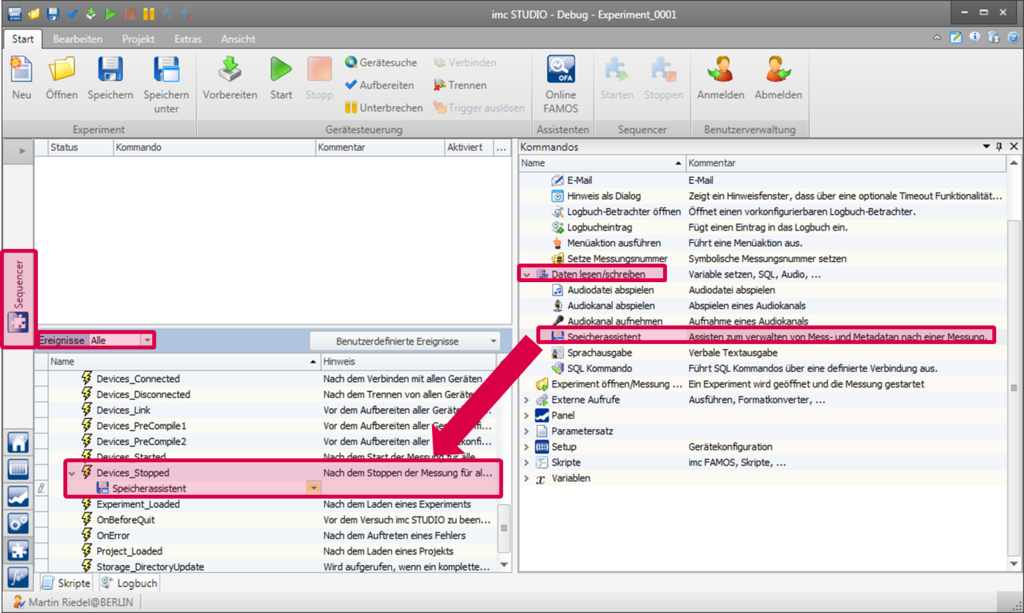

Store data after measurement - upon push of a button
Enhanced import and export functions
New import and export functions allow automated configuration of experiments.
You can import and export:
- imc Online FAMOS code
- Characteristic curves
- Balancing values
- Parameter sets
Assistant for Kistler Roadyn Sensor
Another area where imc STUDIO has achieved advancements is the connection of smart sensors, enabling complex measurements of driving dynamics, such as Kistler wheel force transducers (RoaDyn®), to be accessed via an interface.
4. Neue Widgets
Zeigerinstrument mit farbigen Zonen
Alle Widgets um neue Funktionen erweitert
Alle vorhandenen Widgets sind um neue Funktionen erweitert worden:
- Automatisches Ein- und Ausblenden von Widgets und Kurvenfenstern - so können Sie z. B. einen Reportknopf erst am Ende einer Messung anzeigen oder Kurvenfenster übereinander legen und per Knopfdruck die Sichtbarkeit umschalten.
- Optionales Suffix „aktueller Messungsname“ am Kanalnamen
- Definieren der Aktualisierungsrate von Widgets
- Widgets zur numerischen Eingaben: Zahlen können nun per Tastatur oder Mausrad verändert werden
New design elements and functions
imc STUDIO comes with attractive new features for intuitive interactive visualization, such as:
- Zoom for panel pages
- Change zoom level in design mode
Navi Bar
- Replay function
- Navigate GPS positioning data on reloadable map
Hand in hand with measurement data analysis

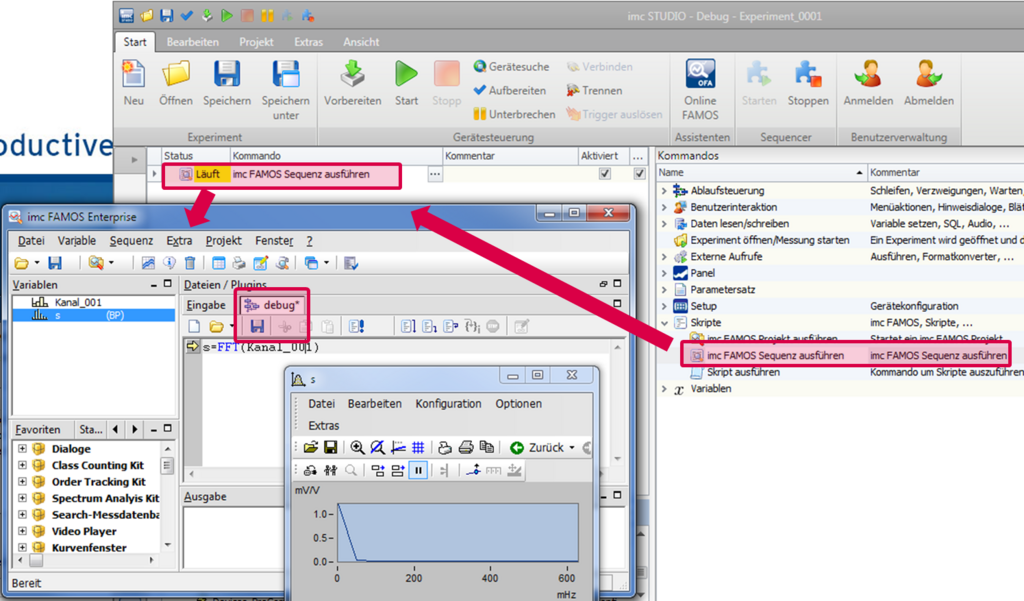

The idea of integrating imc FAMOS to automate data analysis through sequences has been enhanced: by means of the new “Debug-Mode” it is possible to run these sequences step-by-step, directly with the latest measurement data. This means all interim results are available for processing and viewing, which in turn makes it significantly easier to review and develop analysis algorithms.
![](/fileadmin/_processed_/a/a/csm_Multi-Monitoring_87fbe39a74.png)
Multi-Monitoring
imc STUDIO Monitor allows multiple users to simultaneously view live data at multiple computer wokstations. Data can also be enhanced by meta information (i.e online commenting) and additionally stored by these distributed clients.
Integrate your own program code
![](/fileadmin/Public/Products/Measurement_Software/imc_STUDIO/5.0R3/icon_flexible.png)
A scripting interface enables application engineers to add their own program code to imc STUDIO applications.
This covers:
- Integrating own software code into imc STUDIO (c# with .net Framework)
- Extending imc STUDIO with special functionalities
- Coupled to imc STUDIO Sequencer, events and /or background scripts (imc STUDIO Panel, Exp)
- Integrated workbench: development environment with modern editor (IntelliSense)
- incl. access to external hardware (actuators, lab devices, test stand infrastructure, etc.)
Free Runtime Edition
![](/fileadmin/Public/Products/Measurement_Software/imc_STUDIO/5.0R3/icon_one-hand.png)
A free Runtime Edition allows existing imc STUDIO applications to run at any number of work stations.
