Development test stand for EC motors with and without their own ECU

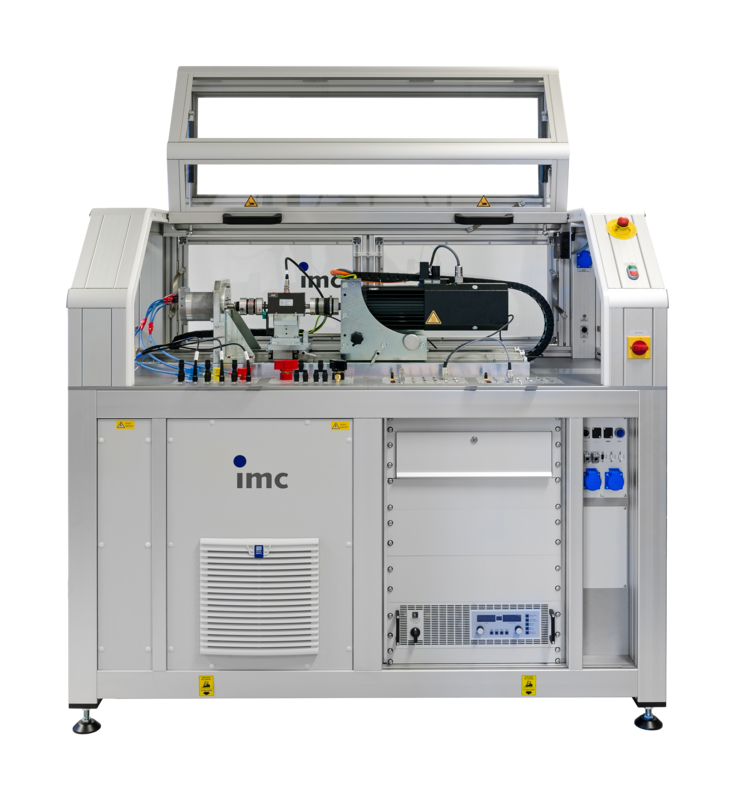

Development test stand for EC motors
Development test stand for EC motors

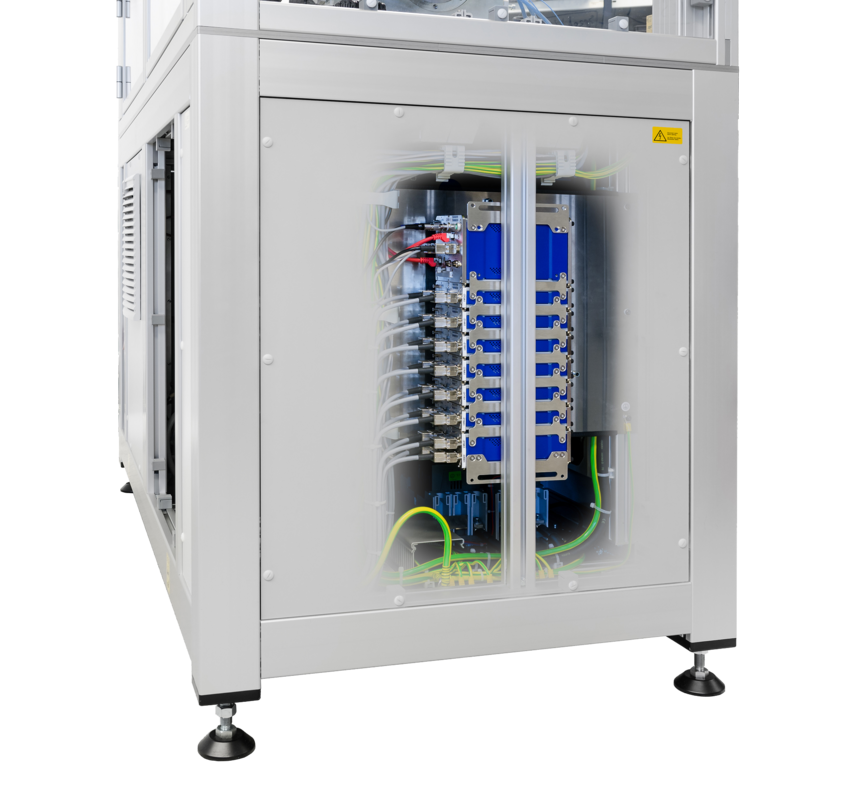

measurement system integrated in the test bench
measurement system integrated in the test bench

All test sequences are automated

DC and EC motors can be tested fully-automatic on this test stand

  • Suitable for DUTs up to 20 Nm and 12,000 rpm
  • Max. DC power supply: 80 V, 170 A
  • Test types: characteristic curve with and without field weakening, torque ripple, cogging & friction torque, Back EMF
  • All tests can be freely parameterized without programming
  • Easily create new test types with the software platform imc STUDIO


Integrate testing and control with imc:

  • Measurement data acquisition from imc CRONOSflex with fast 2,000 kHz aggregate sampling rate and up to 48 kHz frequency response per measurement channel
  • Calculation and visualization of characteristic values with trend line in quasi real time
  • Automated measurement data storage
  • Create reports with the signal analysis software imc FAMOS
  • Testing sequence control with imc CRONOSflex
  • Complete turnkey solution from a single source

With this test stand, the customer has the possibility to test a variety of motor types found in the automotive industry (e.g., steering or servo motors). The automated sequencing and test stand flexibility are prerequisites when it comes to making productivity gains during the development phase of a motor.



↑
