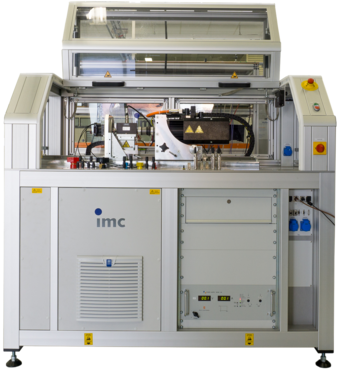

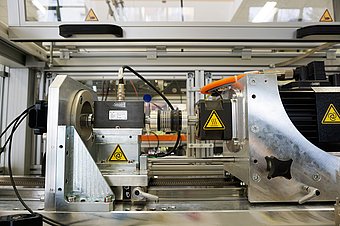

Application: development support of EC motors

• The test stand is used to validate ABS motor specifications
• EC motors can be tested at up to 10,000 rpm and 10 Nm
• Testing and measuring of customer-developed ECUs for EC motors possible


Integrated test, measurement and control with imc:

• Data acquisition with imc CRONOSflex with 2,000 kHz aggregate sampling rate
• imc software solution for development test stands based on imc STUDIO
• Testing types:

  • Characteristic curve (torque- and speed-controlled)
  • Back EMF (electromotive force)
  • Cogging torque
  • Friction
  • Moment of inertia
  • Resistance
  • Inductance
  • Determination of flow model
  • Torque ripple under load

With this test stand, the customer has the possibility to quickly set up and test different pump types. The automated processes and the flexibility of the test bench increase productivity during the development phase of a motor.
