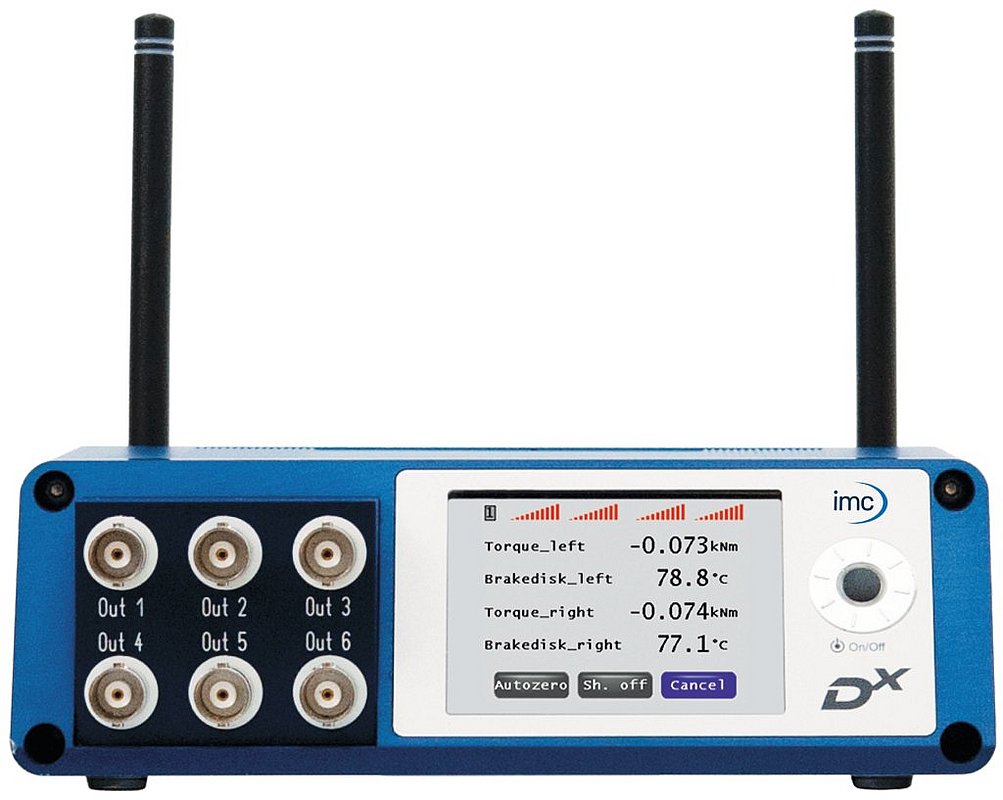

Dx receiver unit (RCI)

With the development of Dx telemetry, we focused on the needs of the user: whether on the test bench, test track or in a factory setting – by creating a modular system with universal transmitters, the Dx covers a wide range of applications – a certain economic advantage even in times of declining budgets.

Interference-free operation

The integrated diversity mode ensures maximum noise immunity during data transfer. In addition, along with actual measurement signals, redundancies for error detection are also transmitted.
This ensures that the receiver unit outputs only correctly transmitted data.

Freely programmable transmission frequencies allow for avoidance of already used frequencies and parallel operations can be set up using multiple telemetry systems.

Seamless integration

For seamless integration of the Dx into your existing measurement hardware, it comes standard with a variety of interfaces:

  • CAN output
  • Analog outputs
  • Ethernet interface

Technical data

Voltage supply9 up to 36 V DC
Power consumption< 5 W
CAN interfaceCAN 2.0b,
Standard- & Extended-Identifier,
Freely programmable up to max. 1 MBaud
Connection according to ISO 11898, galvanically-isolated
Analog output6 BNC jacksChannels freely assignable, output max. ±10 V
Autozeroremote controlled
Antennas2 independent receiver systems operating in diversity mode
StorageSD card (SDHC)
SynchronizationSynchronized sampling & regulated transmission frequencies of up to 4 transmitter units (SCTs)
Temperature range-20°C to +65°C
Display2.83 inch OLED, 320 x 240 px
Dimensionsca. 170 x 130 x 53 mm
Weightca. 0.8 kg
Option: speed recordinginput for yaw rate sensorOnline calculation of power from the torsional moment and speed
Option: data loggerstorage of measured data on integrated SD cardin preparation
