Dx-BrakeTemp: Wireless temperature measurements on wheels

With Dx-BrakeTemp users have at their disposal a turnkey telemetry system for high-precision measurement of temperatures directly on the wheels of road vehicles. All measurement signals, such as the temperatures at the brake disc, are digitized directly at the wheels and transmitted telemetrically via mirror antennas to the receiver unit inside the vehicle. With its robust design, the system is also well suited for rough environments and road tests in all kinds of weather.

  • Precise temperature measurement due to differential sensor inputs with integrated thermal reference point.
  • Robust transmitter modules with integrated power supply, waterproof (IP 67) for use in all weather conditions.
  • Convenient system check by remote-controlled detection of encoder breakage and additional channels for monitoring system status (battery voltage, temperature in the housing, radio signal reception strength) facilitate monitoring and troubleshooting.
  • Highest interference immunity of the telemetry line due to digital data transmission (resolution 16 bit) with error detection.
  • Fast integration into existing measurement technology via the standard CAN and analog interfaces.

Synchronous temperature acquisition on up to four wheels

Sychronously measure all 4 wheels

All four wheels on a vehicle can be synchronously measured. The data are displayed in real time, in physical values.

Dx-BrakeTemp - Transmitter unit

Dx transmitter unit with 3 DI type K thermocouple channels

Dx transmitter unit with 4 SE type K thermocouple channels

Short set-up time

The Dx-BrakeTemp sensors are supplied in special housings that are particularly robust and easy to handle. Optional mounting plates with collets are available to attach the system to the vehicle's standard wheel bolts. The set-up time is therefore very short.

Dx receiver unit (RCI)

Dx receiver unit (RCI)

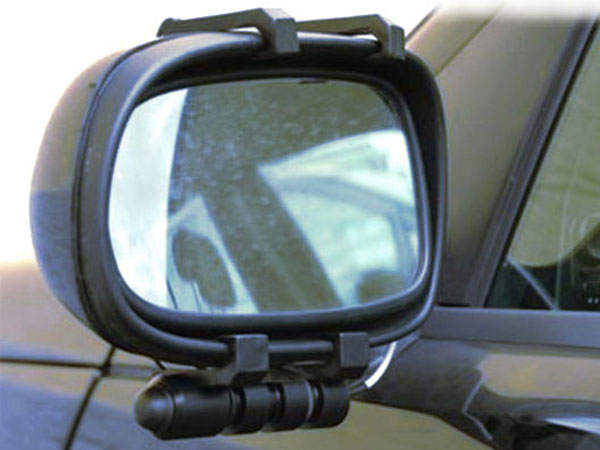

Dx antenna for mounting on the side mirror

Accuracy±1 K
Temperature range-10 °C to 60 °C
Sensor inputs3 or 6 thermocouples type J or K per wheel
Sampling rateUp to 200Hz per channel with 3 channels per wheel
Measurement rangeType K: to 1300 °C
Type J: to 1200 °C
Resolution16 bit
DimensionsHeight: approx. 50 mm
Diameter: approx. 100 mm
Mounting on the wheelCollets on the wheel bolts
Dx-Telemetry Transmitter Unit (SCT)
Transmission frequencyDx: 13 frequencies in the 868-MHz-Band
Dx-HT: 17 frequencies in the 2.4-GHz-Band
Sampling rateMax. 4.6/5.0 kHz per channel (868-MHz-/2.4-GHz-Band)
Resolution16 bit
Synchronized measurementsUp to 4 Dx-SCTs (4 wheels)
Ingress protection ratingIP 68
Power voltageBattery with 40 h operation time
Transmission powerMax. 10 dBm
Dx-Telemetry Receiver Unit (RCI)
Antenna inputs2 independent receivers in diversity mode
Display2.83 inch color display, 320 x 240 px
Auto-zeroRemote controllable
CAN interfaceCAN 2.0b acc. to ISO 11898, max. 1 MBaud
Analog output6 BNC sockets
ConfigurationUp to 4 Dx-BrakeTemp
Power voltage9-36 Volt DC
Temperature range-20 °C to +65 °C
DimensionsApprox. 170 x 130 x 53 mm (without antenna)
WeightApprox. 0.8 kg
