Built-in real-time analysis & control
Collecting buckets of raw data is a start, but are you also interested in seeing instant results and real time system response from your test system? If so, you might like to learn more about imc Online FAMOS.
[Translate to Spanish:] imc Online FAMOS enables the transformation of raw measurement data into immediate information within the measurement system itself, without any help or reliance on an external PC. imc Online FAMOS can perform synchronized mathematical calculations on live data from multiple channels; calculate and record signal statistics; as well as perform comparison operations and deterministic advanced open loop and closed loop control.
In this way, imc Online FAMOS saves you time and money, minimizing your time to test by allowing you to immediately “see” if your test is working and eliminating, or at least markedly reducing, the need for post-acquisition data crunching and subsequent analysis work.
[Translate to Spanish:] Frequently, a test’s progress directly depends on the measured values and their resulting analysis. imc Online FAMOS can eliminate delays between the capture of data and the start of the decision process. The results from streaming calculations and other analyses are available immediately, as the data is collected and analyzed without interfering with the ongoing measurement. This allows the progress of the test to be monitored, and altered if necessary. For instance, a driver on a test track may decide while driving if a test cycle must be repeated to meet test conditions, or if the test cycle may proceed—without the time wasting effort of driving back to the garage first, waiting for the data to be analyzed, only to discover a test needs to be repeated. And neither the analysis nor the display of the results requires any PC: an imc Display unit connected with any of the imc Data Acquisition Systems is all that is needed to see what is going on.
[Translate to Spanish:] While decision making requires response times which are fast by human standards, in successful direct feedback control the measurement and control device’s response must be a fraction of a millisecond. Thus, test personnel can be immediately informed about the current state of a test or measurement, even while the measurement device can independently intervene in the test procedure. This saves time and money, as imc Online FAMOS, combined with the digital and/or analog outputs of the imc data acquisition systems, makes any imc device a comprehensive and synchronized measurement and control system, without the need to synchronize or interface to additional external hardware.
Neither the real-time data analysis nor the display of the processed data requires a PC. The analysis is carried out on the processor of the stand alone imc data acquisition system.
For data visualization, an imc display which is also suited for interactions such as starting / stopping the measurement, can be used.
[Translate to Spanish:] Unlike a fixed purpose analyzer, imc Online FAMOS is easily adapted to the way you work and the tests you need to perform. In total, there are over 150 functions and operations available, which may be combined in virtually any configuration to produce and save a wide variety of virtual channels and calculated values. And since the results are continuously calculated from streaming measured data, “virtual” channels can also be used as part of the control system or to define sophisticated triggering conditions for the measurement itself.

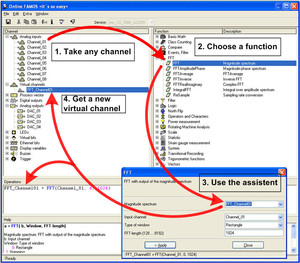

All functions can be accessed with one mouse click, thanks to the imc Online FAMOS Formula Assistant. Since no specialized programming language skills are required, the imc data acquisition systems may be configured by any user with little or no training.
|Online calculations allow you to define your own operations and control|
|Class-counting (Optional Extension)|
|Order-tracking analysis (Optional Extension)|
|Controller (Optional "Pro" Extension)|
|Transitional recording and event tracking|

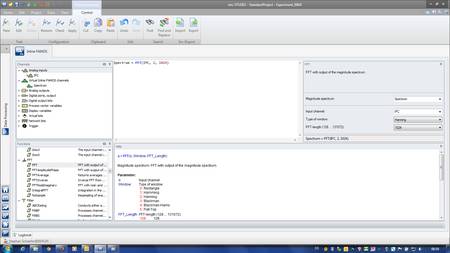

|Basic operations, signal math, filters, and FFT|
|Multi-channel synchronous calculations|
[Translate to Spanish:] For data analysis, a comprehensive collection of standard functions is available: e.g., performance calculations, statistical analysis or mathematical functions. In addition, special areas of application are covered - such as order analysis, acoustical assessments, strain gauge rosette circuits, classifying algorithms for stress analysis, digital filtering or non-linear characteristic curve evaluations.
[Translate to Spanish:]
- All basic mathematical functions are available - from basic arithmetic to differential equations, integers or characteristic curve corrections.
- Functions are easily defined by simply entering formulas in "Pocket Calculator" notation.
- Results are output in the form of virtual channels and can be saved and used for further functions.
While decision making requires response times which are fast by human standards, in successful direct feedback control the measurement and control device’s response must be a fraction of a millisecond. Thus, test personnel can be immediately informed about the current state of a test or measurement, even while the measurement device can independently intervene in the test procedure. This saves time and money, as imc Online FAMOS, combined with the digital and/or analog outputs of the imc data acquisition systems, makes any imc device a comprehensive and synchronized measurement and control system, without the need to synchronize or interface to additional external hardware.
